X-ray mobile system Mobile 32, ARCOM International (Italy)
Warehouse in Kyiv
The new mobile X-ray system Mobile 32 manufactured by ARCOM International (Italy) is designed to meet the needs of any intensive care unit or emergency medical service. The X-ray machine has very compact size, combines power and flexibility.
The mobile X-ray system Mobile 32 supports a wide range of applications. Depending on your needs, Mobile 32 can be used: as a bedside X-ray, a mobile solution in recovery rooms, or even as an add-on X-ray system in emergency rooms.
X-ray mobile system Mobile 32 has an excellent price - performance ratio.
In addition to its compact design, the mobile X-ray system offers a wide range of positioning options. X-ray provides several levels of rotation of the monoblock, providing the ability to adapt to the necessary conditions for any inspection.

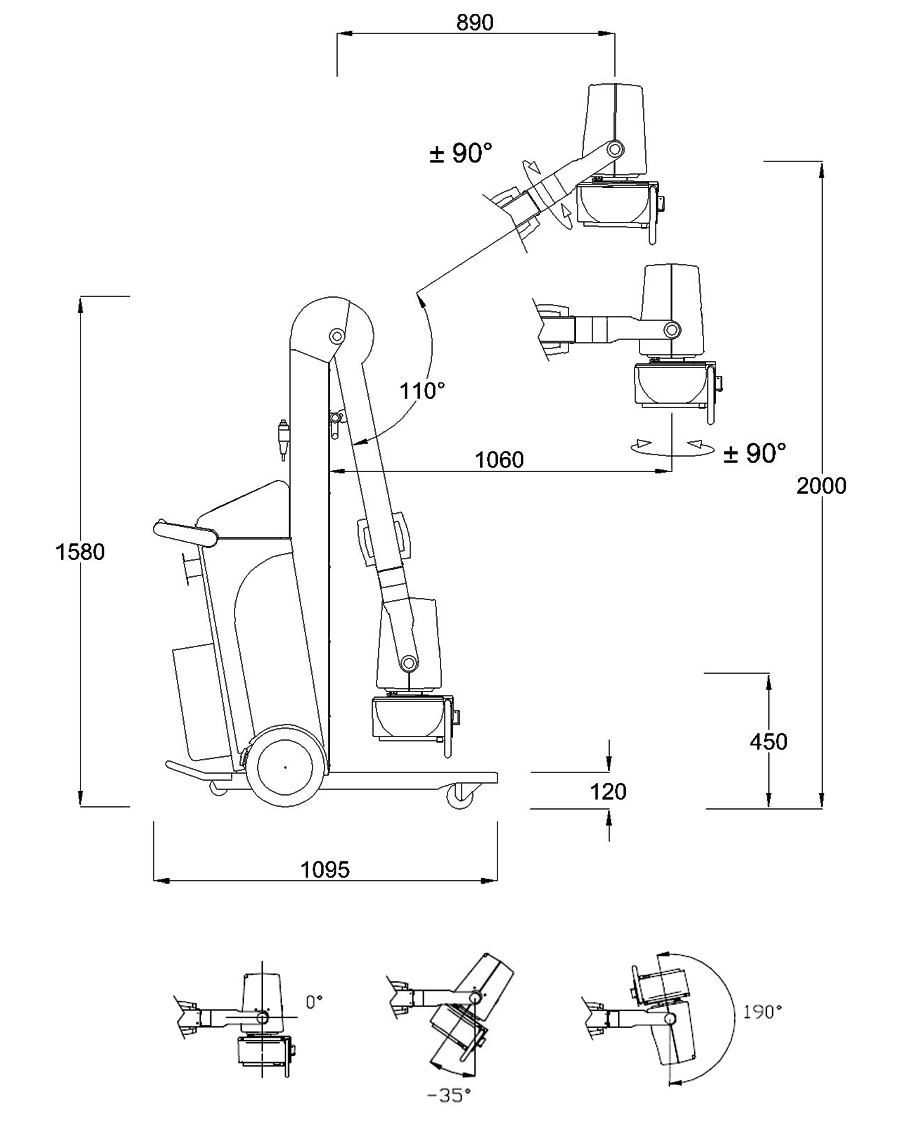

To increase the scheme click on the picture.
All dimensions are in millimeters.
These X-ray systems are occasionally called ward. But its use is not limited of using in hospital wards. Mobile 32 is fully adapted to be used in the intensive care and emergency department, pediatrics, neonatology and orthopedics rooms.
Large rear wheels and a comfortable handle make it extremely easy to maneuver through narrow corridors, elevators and hospital rooms.
X-RAY GENERATOR
High Frequency monobloc
| Maximum power | 32kW (320 mA - 100 kV @ 100 ms) |
| Maximum voltage | 125 kV |
| Maximum mAs | 320 mAs |
| Maximum mA | 400 mA |
| Monobloc thermal capacity | 600 kJ (800 KHU) |
| Monobloc continuous thermal dissipation | 55 W |
| Frequency | 40 kHz |
| kV ripple | < 2% |
| Leakage radiation (IEC 601-1-3) | < 0,5 mGy/h |
| Total filtration | > 2,5 mm Al @ 75 kV |
X-RAY TUBE
Rotating X-ray tube
| Focal spot size | 0,6 mm - 1,3 mm |
| Maximum voltage | 130 kV |
| Anode speed | 3000 r.p.m. |
| Anode material | RTM |
| Anode angle | 15° |
| Anode heat storage capacity | 80 kJ (107 kHU) |
| Maximum continuous anode heat dissipation | 320 W |
CONTROL CONSOLE
Microprocessor controller console
| Display | 10” TFT LCD touchscreen, 16,2 M color, 340 cd/m2 |
| Resolution | 1024 x 600 pixel |
| Alarm | Acoustic and luminous X-ray emission alarm |
| APR | Languages available:
• Italian
• English
• French
• Spanish
• German
• Russian
• Portuguese
• Polish
• Bulgarian
• Turkish
• Indonesian
• Vietnamese
|
OPERATION MODE
| 3-point operation | kV – mA – ms |
| 2-point operation | kV – mAs |
| Anatomical programming | 510 stored techniques |
| Compensation levels | 5 patient’s thickness compensation levels |
| Film screen selection | 3 speeds |
| Firmware updating | Internal USB port |
| Exposure time | 3 ms ÷ 6300 ms (34 steps) |
| kV range | 40 kV ÷ 125 kV (1 kV step) |
| mA range | 25 mA ÷ 400 mA (13 steps) |
| mAs range (2 points technique) | 0,1 mAs ÷ 320 mAs (36 steps) |
| Two modalities | With two push-buttons on control console
Two-step hand switch complete of spiral cable extendable up to 3,8 m. |
SAFETY AND PROTECTION
Automatic control and protection of the filament current
Over current protection
Overvoltage protection
X-ray tube overload protection
Monobloc kHU automatic survey
Errors description
COLLIMATOR
Manual collimator
Adjustment from 0x0 to 43x43 cm at 1 m focal distance (FFD)
High intensity lamp (160 lux) for X-ray field simulation and automatic switch Off programmable by software from 5s to 120s.
Retractable tape measure for FFD measurement
±90° collimator rotation
Examination of the chest and lungs with a Column vertical bucky.
MOBILE STAND
Counterbalanced unit
Antistatic rubber wheels
Dead-man operated parking brake
Variable focus-floor distance from 450 mm to 2000 mm
Monobloc yoke support rotation: +90° / -90°
Monobloc rotation in the yoke: -35° / +190°
Cassette bin for storing up to nr. 6 radiographic cassettes 35x43 cm size (14 x 17 inches)
Overall dimensions in transport position 109 x 68 x 158 (H) cm
Weight: ≃165 kg
POWER SUPPLY REQUIREMEN
Voltage: 230 Vac single phase 10%
Frequency: 50 Hz / 60 Hz
Nominal current: 5 A
Momentary current: 32 A
Total line resistance: 0,40 Ω
Automatic line compensation: ±
This system is completed Dose Area Product Measuring System VacuDAP according to the article 17 the Law of Ukraine «On Protection of People against lonizing Radiation».
X-Ray system can be delivered according to Decree of The Cabinet of Ministers of Ukraine ¹224 from 20 march 2020.
