Flat-Panel Exprimer EVS-3643

Exprimer EVS-3643 is quality flat-panel digital X-ray detector. Csl Scintillator - Indirect Conversion FPD.

Excellent image quality using direct deposited Csl
Ultimate sharpness image by TRUVIEW ART
Instant upgrade to digital mobile X-ray system
High resistance to impact and vibration
Low price fixed grid (120 lines/tnch)
Slim, Wireless, Long Lasting, Portable

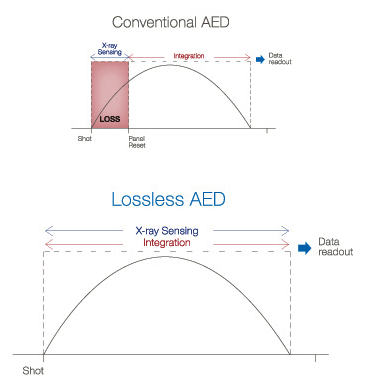

Accurate and Reliable AED Function

Lossless AED

Significantly decreased AED malfunction rate
Minimal patient x-ray exposure
Faster image acquisition
Decreased possibility of repeats
Sharper & clearer image quality

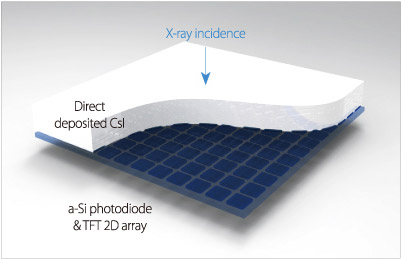

Direct Deposition Csl

Csl Scintillator

Minimal light scattering with columnar structured Csl
Optimized Csl thickness

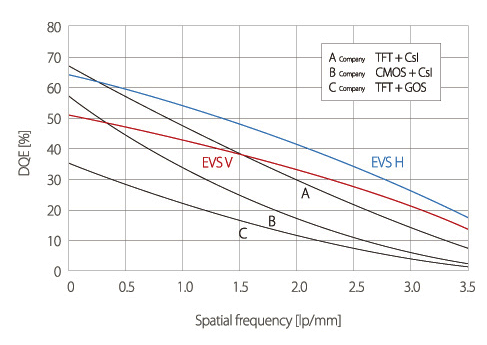

High Quality image with high DQE

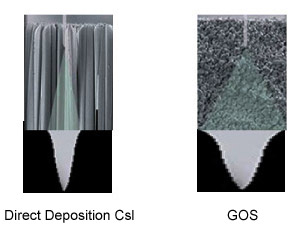

Light Dispersion Comparison

Complete protection against damage

Protection Suit

3.3ft height drop test cleared
Metal unibody structure
Safe usage in all applications
Increased usability with an ergonomic design
Horizontal and Vertical designs

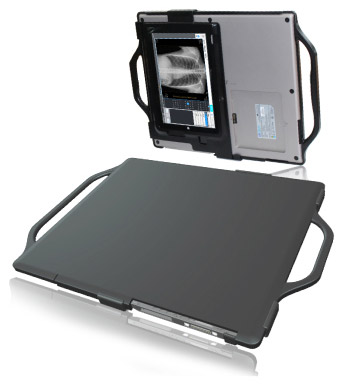

Portable Console PC attachable

Compact and light

Slim Dual Battery Charger

Two EVS 3643 batteries charged simultaneously
LED indicator showing battery level
Increased portability with compact and light design
Efficient space management with horizontal and vertical charging

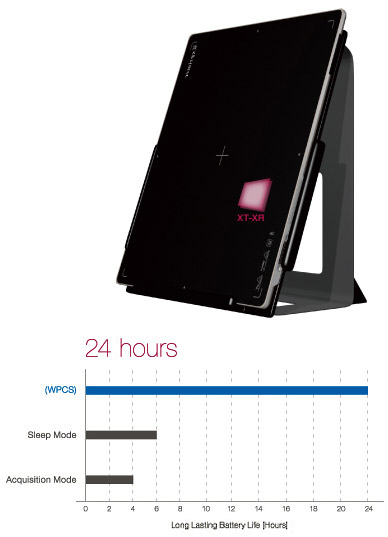

Wireless Power Charging System

WPCS

24 hour battery usage
Battery charging with no wires
Simultaneous battery charging and storing
Vertical design for efficient space management

Diagnostic care without limits

Perfect Portability

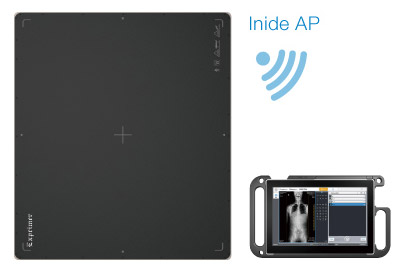

Direct communication with Tablet PC & Smart phones
Wireless communication
Mobile application
Compatible with Portable Console PC (PCP)

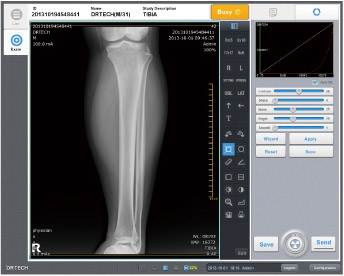

Convenient & Smart image processing software

Econsole1

Smart and Easy workflow
Developed and refined by doctors and radiologists
Easily adjustable image parameter tool
Optimized for Exprimer, FLAATZ & FDXD
Multi-language support
Cost Effective

Specifications Flat-Panel Exprimer EVS-3643

Purpose	Gen.Rad. / Wireless Portable
Detector Type	Csl by direct deposition
Dimensions	386(H) x 460(V) x 14.5(D)
Weight	2.98 kg
Active Area	358 x 430 mm
Pixel Pitch	140 um
Resolution	2,560 x 3,072
A/D Conversion	14 bits
Voltage	DC 12V, 5A
Power Consumption	12W maximum
Communication Interface	1 Giga bps / IEEE 802.11n (2.4 / 5 GHz)
X-ray Interface	Lossless AED
