See! Diagnose! Cure!

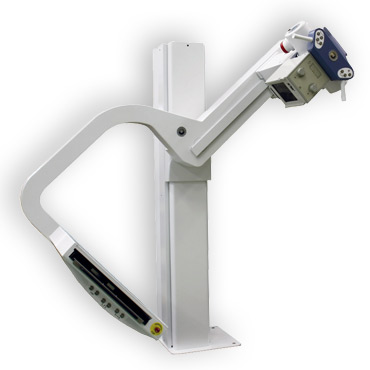

Basic radiographic system (BRS) BREEZE, ARCOM (Italy)
Basic Radiographic Systems (BRS) can be made in different variants, for example, with fixed or variable focal length, manual or automatic positioning, mechanical or electromagnetic braking device.
This system is intended for practical use by an operator with a minimum level of training.

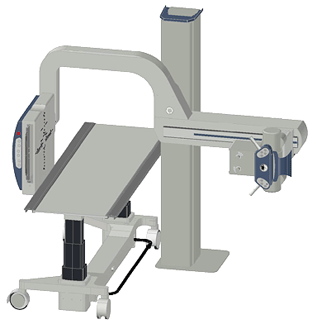

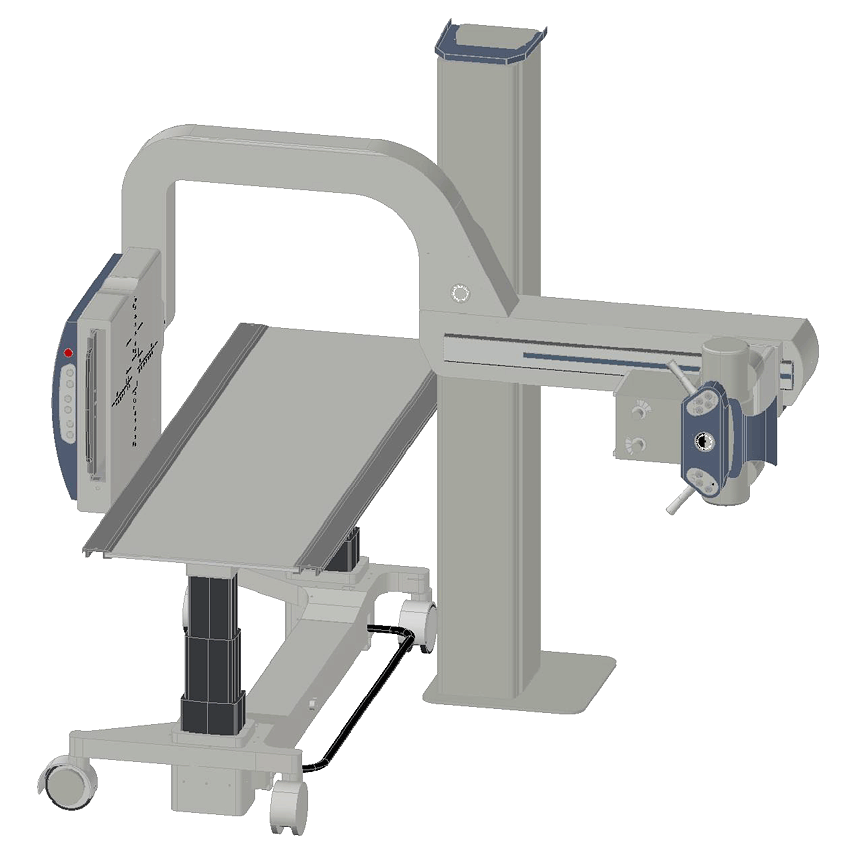

Together with a trolley with radiolucent deck this system lets you perform all common radiographic researches in small spaces.
Universal system with simple and convenient features: numerous options of patient position are provided be simple settings and a few movements.
It has fast installation and easy operation.
The high degree of compatibility with all types of X-ray tubes system provides the versatility of the system.
All BRS models can be equipped with the device for fixed grid, standard Bucky device with an oscillating grid or docking-station for the various Flat-panels.

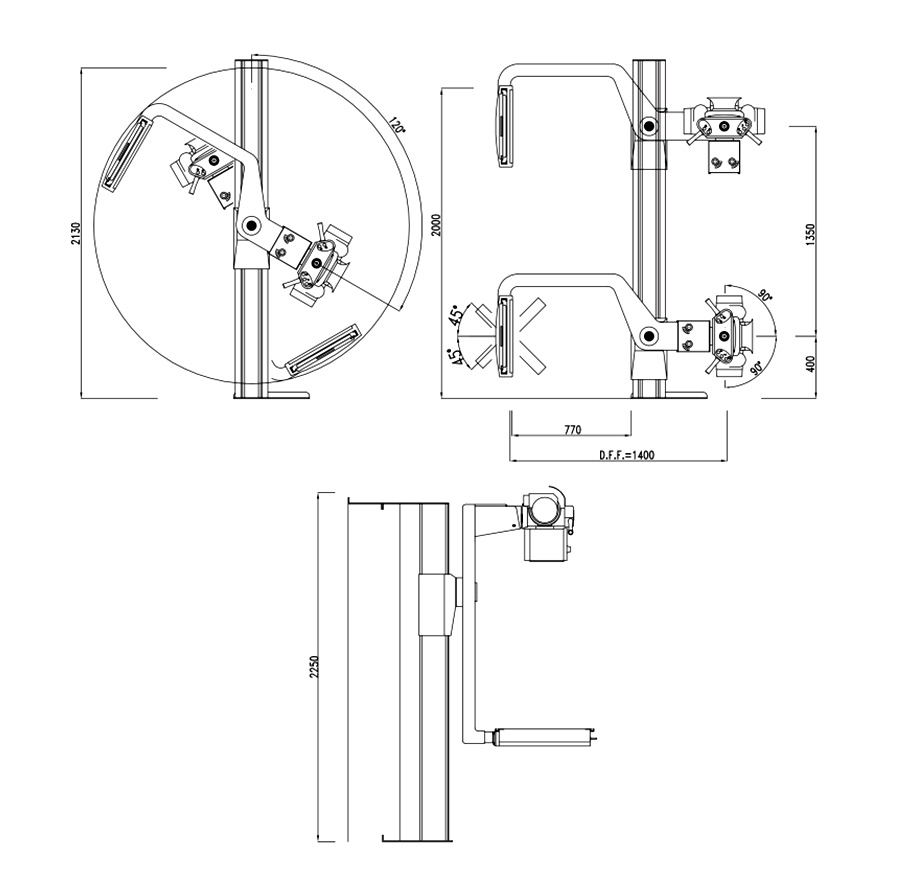

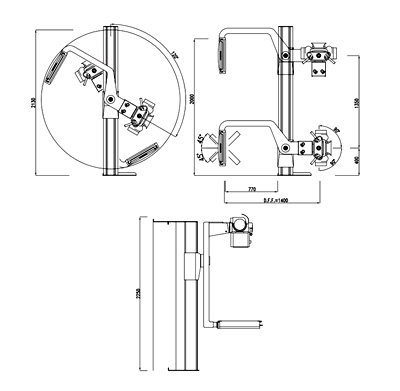

EBR002 and EBR0D2 - Fixed focal distance (all movements are carried out manually)
To increase the scheme - click on the picture.
All dimensions are in millimeters.
|
Technical characteristics of EBR002
- Vertical movement with counterweight 1350 mm
- The minimum distance from the floor to the focus X-ray tube - 400 mm
- Indicator of rotation angle (inclinometer)
Swivel C-arm
- The maximum rotation angle - 30° to the left, 120° to the right
- The focal length is 1400 mm
- Indicator of rotation angle (inclinometer)
Supporting devices for collimator and X-ray tube
- The angle of rotation - 180° to the left, at 180° to the right
- Indicator of rotation angle (inclinometer)
- Collimator with manual control
Supporting device for images detector
- The maximum image size - 43x43 cm (depending on the detector)
- X-ray grid with high spatial resolution
- Supporting device for auxiliary equipment
- The rotation angle - 45° to the left, 45° to the right
- Indicator of rotation angle (inclinometer)
|

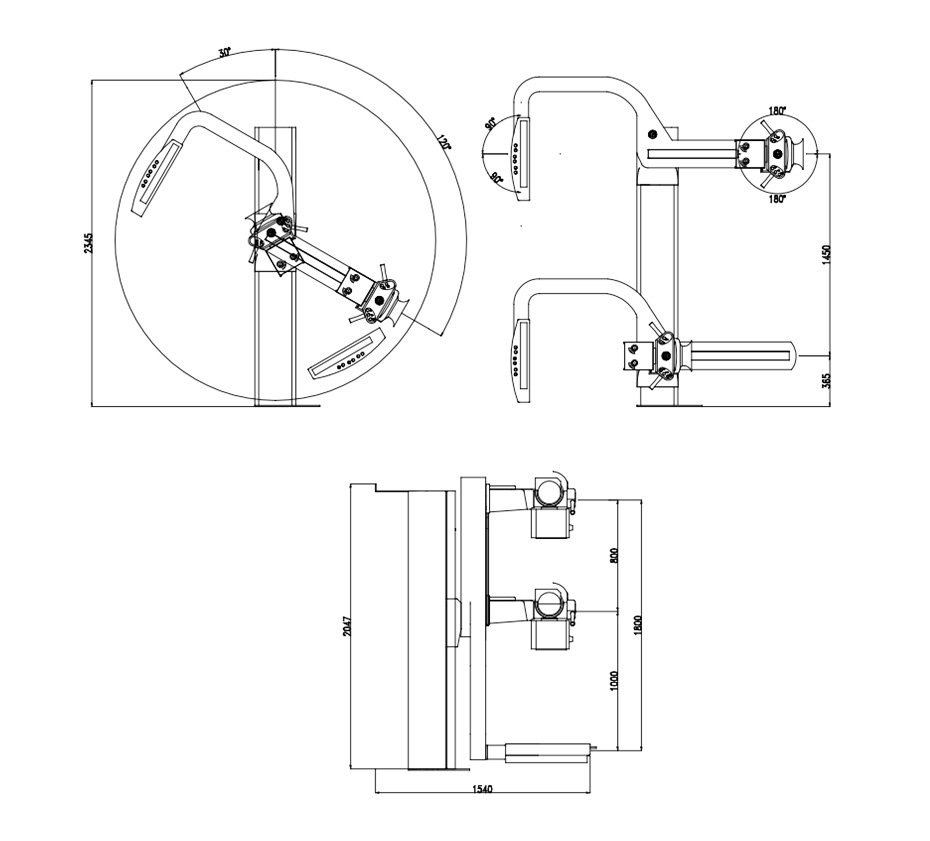

EBR001 and EBR0D1 - Modifying focal distance
Technical characteristics of EBR001
- Vertical movement via electric drive 1450mm
- The minimum distance from the floor to the focus of X-ray tube 365mm
Swivel C-arm
- The maximum rotation angle - 30° to the left, 120° to the right
- Focal distance varies from 1000 to 1800 mm
- Indicator of rotation angle (inclinometer)
Supporting devices for collimator and X-ray tube
- The angle of rotation of 180° to the left, 180° to the right, a ELM braking device
- Indicator of rotation angle (inclinometer)
- Collimator with manual control
Supporting device for images detector
- The maximum image size - 43x43 cm (depending on the detector)
- X-ray grid with high spatial resolution
- Supporting device for auxiliary equipment
- The rotation angle of 90° to the left, 90° to the right
- Indicator of rotation angle (inclinometer)
|
To increase the scheme - click on the picture.
All dimensions are in millimeters.
|

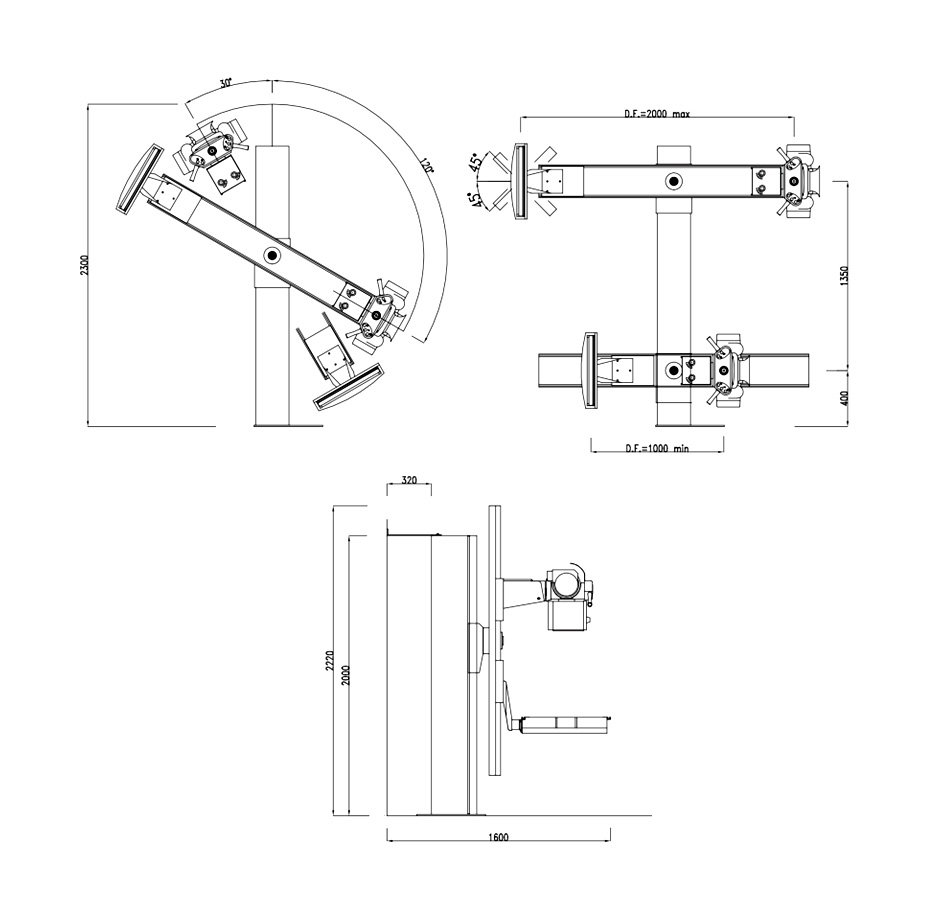

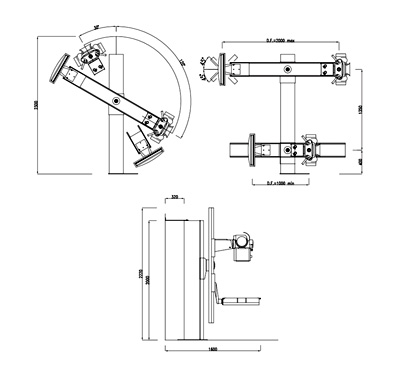

EBR003 and EBR0D3 - Modifying focal distance (all movements are carried out via electric drive)
To increase the scheme - click on the picture.
All dimensions are in millimeters.
|
Technical characteristics of EBR003
- Vertical movement via electric drive 1350mm
- The minimum distance from the floor to the focus of X-ray tube 400mm
- Indicator of rotation angle (inclinometer)
- Swivel C-arm
- The maximum rotation angle - 30° to the left, 120° to the right
- Focal distance varies from 1000 to 2000 mm
- Supporting devices for collimator and X-ray tube
- The angle of rotation of 180° to the left, 180° to the right, a electromagnetic braking device
- Indicator of rotation angle (inclinometer)
- Collimator with manual control
Supporting device for images detector
- The maximum image size - 43x43 cm (depending on the detector)
- X-ray grid with high spatial resolution
- Supporting device for auxiliary equipment
- The rotation angle of 45° to the left, 45° to the right
- Indicator of rotation angle (inclinometer)
|

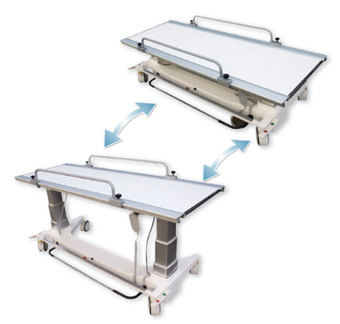

| The system can be equipped with trolley with radiolucent deck. For example, EVO002. |
|
 |
| To increase - click on the picture. | |
| Transfer | 4 swivel wheels |
| Wheels brake | Mechanical for 2 wheels |
| 2 position of the brake | All wheels are free
All wheels are locked |
| Tabletop | 4 degrees of freedom, transparent for X-Ray
laminate and mechanical brake |
| Tabletop absorption | equivalent of 0.7 mm Al |
| Tabletop size | 2000x728 mm |
| Tabletop height from the floor | from 500 to 900 mm |
| Maximum patient weight | 200kg |
| Trolley weight | 155kg |
| The maximum load | 4000 N (in the "pull" mode) |
| Max. increase / decrease of the speed | 9 mm/s |
| Power supply | 2 batteries for 24 V D/C |
Battery
Charger | 230 Vac |
|
System components
What is the most important characteristic that is required from the X-ray tube? Reliability and image quality, high heat capacity, focal spot size...
We choose tubes with the best ratio "price-quality". We select the X-ray tube according to the appointments and tasks facing the X-ray system.
Tubes samples are given in the table.
|
| Model | Anode
angle | Focal spot | Power,
min/max kW | Heat
capacity
kHu | Max. voltage,
kV |
| E7884X | 12° | 0,6/1,2 | 20/50 | 300 | 150 |
| E7252X | 12° | 0,6/1,2 | 15/75 | 300 | 150 |
| E7242X | 14° | 0,6/1,5 | 17/47 | 200 | 150 |
Can be equipped X-ray Tubes with VAREX or IAE (as option).
|

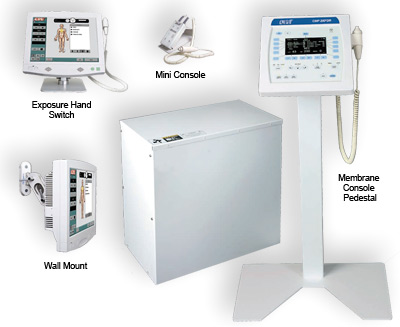

X-ray generator - is the heart of each X-ray system. Features and characteristics such as simplicity of the interface, the speed and reliability of assembly have great importance.
Modern X-ray generators - are the samples of advanced engineering, which requires patience, experience and in-depth knowledge of modern technologies, which are used in radiology.
| Model | CMP 200,
32 kW | CMP 200,
40 kW | CMP 200DR,
50 kW | CMP 200DR,
65 kW |
| Rated power, kW | 32 kW | 40 kW | 50kW | 65kW |
| Main | 380V, 50Hz, 3 phases |
| Purpose | Radiography |
| Range of high voltage, kV | 40-125 kV | 40-150 kV |
Range of anodic
current, mA | 10-400 mÀ | 10-500 mÀ | 10-630 mÀ | 10-800 mÀ |
| Range of the quantity of electricity mAs | 0,1-500 mÀs | 0,1-630 mÀs | 0,1-800 mÀs |
Range of exposure
time max. | 6,3s |
| Output frequency, kHz | max. 400 kHz |
Number of anatomical
programs APR | 1024 for membrane console,
20000 for Touchscreen console |
AEC (Automatic
exposure control) | Ionization chamber or solid state detector |
Can be equipped X-ray generators Odel 50kW and 65kW, or German production Spellman rated power 40kW, 50kW or 65kW.
|
Our generators are created with the use of long-term experience, modern design and advanced manufacturing technologies.
Successful collaboration allows the company ARCOM to provide its customers with high-quality technical service worldwide.
The use of different devices is possible, subject to approval by the specialists of company ARCOM.
|
 PDF Catalog - Basic radiographic system (BRS) BREEZE
